Yuken Series HG-03/06/10 Hydraulic Pressure Control Valve

  • Yuken Series HG-03/06/10 Hydraulic Pressure Control Valve
  • Yuken Series HG-03/06/10 Hydraulic Pressure Control Valve

Yuken Series HG-03/06/10 Hydraulic Pressure Control Valve

    Payment Type: T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 5 Ton
    Delivery Time: 30 Days
    Packaging: Export standard packing
    Productivity: 500tons per month
    Brand: A&M
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 500tons per month
    Certificate: ISO SGS
    HS Code: 8431390000
    Port: Tianjin

Product Description

Product Description
The pressure control valve controls the oil pressure in the hydraulic system to meet the different requirements of the actuator for output force, output torque and motion state. It uses the balance principle of ydraulic pressure and spring force to achieve and improve the stability of the system, such as stabilization, pressure holding, pressure reducing and pressure regulating.
MODEL INSTRUCTION
Name
Model examples
Specifications
Oil discharge form
Pressure regulating
range
Remote control relief valve
DT-01-22
01
---
---
Direct acting relief valve
DT-02-B-22
02
---
B/C/H
Pilot controlled relief valve
BT-03-V-32
03/06/10
---
---
Low noise relief valve
S-BG-03-V-L-40
03/06/10
---
---
Electromagnetic control relief valve
S-BST-03-V-2B3A-A100-N-46
03/06/10
2B3A/2B3B/2B2B/
2B2/3C2/3C3
--
Low noise electromagnetic relief valve
F-A-S-BSG-03-V-2B3A-A100-N-L-51
03/06/10
---
H (C) type pressure control valve
H(C)T-03-C-3-P-22
03/06/10
---
L/M/N/A/B/C
(one-way) pressure reducing valve
R(C)T-03-B-22
03/06/10
---
B/C/H

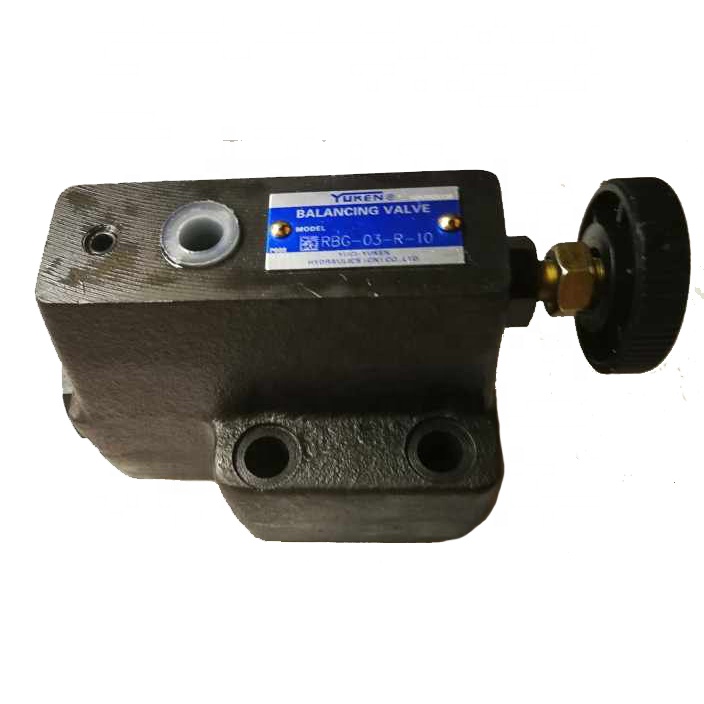

Balance valve (pressure relief valve)
RBG-03-R-10
03
---
---
Unloading relief valve
F-BUCG-06-B-V-30
06/10
2B3A/2B3B
B/C/H
Electromagnetic unloading relief valve
BUCG-06-B-2B3A-V-ET-A240-N1-10
06/10
---
B/C/H
Pressure relay
F-ST-02-B-20
02
---
B/C/H/K
Semiconductor pressure switch
JR-02-100-10D
02
---

TECHNICAL FEATURE

01.Simple structure, small size, easy to assemble and disassembly
02.High pressure sensitivity and good stability
03.Good versatility, remote control and multi-stage voltage regulation
SPECIFICATION
Name
Maximum working
pressure(MPa)
Use flow range (L/min)
DT/G-01/02
25
~16
BT/G-03/06/10
25
100~400
S-BG-03/06/10
25
100~400
BST-03/06/10
25
100~400
S-BSG-03/06/10
25
100~400
H(C)T/G-03/06/10
25
50~250
R(C)T/G-03/06/10
21
40~250
RBG-03
14
50
BUCG-06/10
21
125~250
DBUCG-06/10
21
125~250

APPLICATION AREA

YUKEN series valves are mainly used in medium and high pressure machinery industries such as construction machinery, sanitation machinery, indoor machinery and injection molding machines.
Detailed Images
Company Introduction
The company integrates research and development and manufacturing of high-end hydraulic product, and is one of the largest and competitive manufacturing enterprises for high-end hydraulic products in China. The company is recognized “high-tech enterprise”by the state. It has an enterprise technology center certified by the state. The annual production capacity reaches 3 million hydraulic components, 40,000 sets hydraulic systems and 20,000 tons of hydraulic castings. The products are widely used in construction machinery, iron and steel, metallurgy, hydraulics, environmental protection, offshore engineering, high-speed rail, wind power, new energy, etc., and have completed a number of national key projects, the products are exported to Europe, America, Asia and Africa. The company continues to strengthen the innovation drive, products and technology continue to expand to high-end manufacturing.

The company consists of four branches: Hydraulic Pump Branch, Hydraulic Valve Branch, Hydraulic System Branch and Casting Branch, there are three subsidiaries of R&D and manufacturing in Taiyuan, Changzhi, Jinan and Shanghai. They produces 3 million units of hydraulic components, 40 thousand sets of hydraulic system equipment, 35 thousand tons of hydraulic castings annually, including high-pressure piston pump, vane pump,gear pump, hydraulic valve, motor, hydraulic cylinder, hydraulic system and castings. They mainly used in engineering machinery, agricultural machinery, transportation (locomotives, rail transit, ships), petroleum machinery, metallurgical steel, coal mines, marine engineering, aerospace, water conservancy and power, machine tool industry, chemical equipment and other fields. The company has provided products for national key projects such as the Three Gorges Project, the South-to-North Water Transfer Project, the localization of metallurgical slab continuous casting and rolling production line and so on.
Product packaging
Our Advantages
The company is a state-recognized high-tech enterprise, with state-recognized hydraulic industry enterprise technology center,and has established a post-doctoral research station with strong independent technology research and product development capabilities. The company has 239 outstanding professionals in development and basic technology, process innovation research of product , including more than 60 senior technical titles. The technology center has established an open operation mode, paying attention to the organic combination of production, education and research, and has established exchanges and cooperation relations with more than 20 universities, colleges and institutes, such as Tinghua University, Beijing Aerospace University, Taiyuan University of Technology, Beijing Institute of Automation, Tianjin Institute of Construction Machinery, etc., and continue to maintain leadership in designing of high-end hydraulic product and controlling of hydraulic-electro-mechanical and other technical fields. The company participated in formulating 21 national and industrial product standards, and obtained 24 invention and practical patents, and won 66 technology progress awards and outstanding new product awards.
Why Choose Us
The company has established a complete quality management system, with the certification of informatization and industrialization "two-oriented integrated management system", and comprehensively implemented refined management to constantly improve product quality and economic benefits.

The company has established a nationwide marketing and service network, dedicated to providing customers with perfect services. We have actively promoted the internationalization strategy and established strategic partners and service agencies in Europe, the Americas, Asia and Africa.

The company upholds the core values of "integrity, innovation, leanness, excellence" and takes the revitalization of China's hydraulic industry as its responsibility to vigorously promote independent innovation and help the development of high-end equipment manufacturing industry.

A&M Manufacturing Co.Ltd.



A&M Company is a Sino-British joint venture, Headquartered in the UK,has more than 30 years of experience in the foundry and general metalworking industries.It has been cooperated and invested foundry in China for more than 20 years. It is a professional foundry integrating development and production, specializing in the production of various sand castings and precision casting in iron/steel, hydraulic valve, hydraulic pump, hydraulic motor, hydraulic cylinder and hydraulic systems. These castings are widely used in the automotive industry, railway vehicles, construction machinery, municipal engineering, pipelines, petrochemicals, mining, power and other industries.

Currently, it annually produces 2 million pcs of spare parts including auto spare parts of all kinds of vehicle, engineering mechanical spare parts and railway rolling stock spare parts, with the annual production capacity is 1 billion yuan.

Our company successfully passed the certification of ISO9001:2008.ISO/TS16949:2009.ISO14001:2008 and OHSAS18001:2007, and got the TPG certificate from the third party of GE.

We have 7 sets of semi-automatic molding lines, 164 sets of CNC machines and machining centers, Germany spectrum analyzer, X-ray testing equipment,56 sets of inspection equipment and 11 sets of clearing equipment.
